Vallox Pureo SR 550
Vallox Pureo SR 550
Goin on sale in 2025

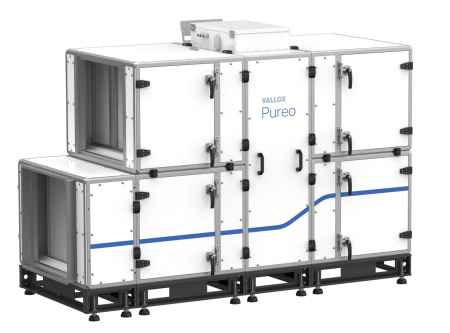

Vallox Pureo SR 550 is the smallest air handling unit in the SR series and designed to meet the ventilation needs of versatile premises. Whether installed in offices or business premises, production or warehouse spaces or public spaces like daycare centres and schools, Vallox Pureo SR 550 offers efficient and reliable ventilation. Its modern and stylish design ensures it can be installed even in a visible location.
The duct outlets are located on the sides in the SR 550 model. SR 550 is equipped with rotating heat recovery and a post-heating liquid radiator. The unit’s structure complies with the requirements of the VDI 6022 hygiene standard. The units are also soundproof and cold insulated: the airtightness (L1) and strength (D1) of the envelope are of top class. The heat transfer class of the frame is T2/TB2. The bypass-flow class of the filters is F9, the best possible option on the market.
Installation and maintenance of Vallox Pureo SR 550 is easy, thanks to the maintenance doors located on each long side of the unit. The handedness of the unit does not need to be considered in advance and the installation location can be chosen flexibly.
The control method of the air handling unit may be chosen according to the location and use. The unit is compatible with the Vallox Pureo control panel with a touch screen and can be connected to any existing house automation system. The standard delivery comes with comprehensive features with a wide range of accessories supplementing the standard installation.
The duct outlets are located on the sides in the SR 550 model. SR 550 is equipped with rotating heat recovery and a post-heating liquid radiator. The unit’s structure complies with the requirements of the VDI 6022 hygiene standard. The units are also soundproof and cold insulated: the airtightness (L1) and strength (D1) of the envelope are of top class. The heat transfer class of the frame is T2/TB2. The bypass-flow class of the filters is F9, the best possible option on the market.
Installation and maintenance of Vallox Pureo SR 550 is easy, thanks to the maintenance doors located on each long side of the unit. The handedness of the unit does not need to be considered in advance and the installation location can be chosen flexibly.
The control method of the air handling unit may be chosen according to the location and use. The unit is compatible with the Vallox Pureo control panel with a touch screen and can be connected to any existing house automation system. The standard delivery comes with comprehensive features with a wide range of accessories supplementing the standard installation.

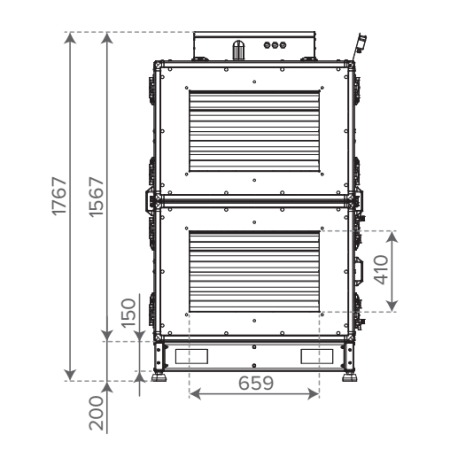

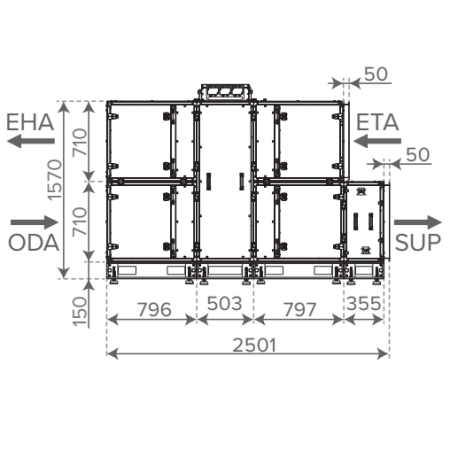

Duct outlets pcs
4
Product depth mm
2445
Product width mm
795
Product height mm
1015
Product weight
726 kg
Duct outlet mm
661 x 950
Cell type
Rotating cell
SKU: 3600090
Product weight: 726 kg
