Vallox TSK Multi 80 MV
Vallox TSK Multi 80 MV

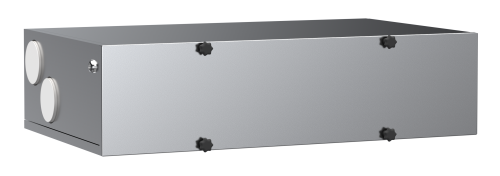

The Vallox TSK Multi 80 MV ventilation unit has a low structure and is suitable for medium-sized apartments. It offers a wide variety of installation options: for instance, the unit may be installed inside the suspended ceiling above the entrance door or in the vestibule. The energy-efficient unit is convenient to use and easy to maintain.
With the integrated humidity and carbon dioxide sensors, Vallox TSK Multi 80 MV controls the ventilation of your home automatically. The sensors monitor any changes in the quality of indoor and boost the ventilation when necessary. The annual efficiency of the unit is 79%.
The ventilation unit is controlled via the MyVallox Cloud service, the MyVallox control panel or the cooker hood. Registering with the cloud service is free, and the service enables remote control of the unit. The ventilation unit can also be connected to house automation via a Modbus RTU or KNX bus.
With the integrated humidity and carbon dioxide sensors, Vallox TSK Multi 80 MV controls the ventilation of your home automatically. The sensors monitor any changes in the quality of indoor and boost the ventilation when necessary. The annual efficiency of the unit is 79%.
The ventilation unit is controlled via the MyVallox Cloud service, the MyVallox control panel or the cooker hood. Registering with the cloud service is free, and the service enables remote control of the unit. The ventilation unit can also be connected to house automation via a Modbus RTU or KNX bus.

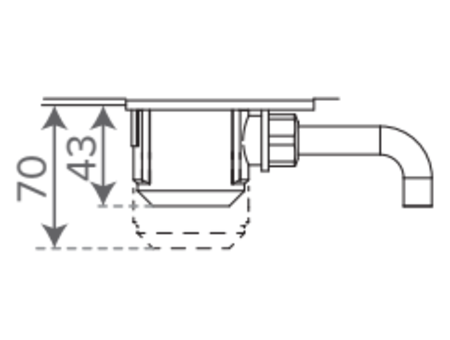

Including accessories: Condensing water seal Vallox SilentKlick.
- Maximum recommended living area 120 m²
- Maximum extract airflow @ 100 Pa 96 l/s
- Maximum supply airflow @ 100 Pa 85 l/s
- Maximum supply airflow EcoDesign 302 m³/h
Suitable for the following applications
Maximum recommended living area
120 m²
Annual efficiency (%)
80
Temperature efficiency of heat recovery (%)
90.3
SEC average climate
-41.915 kWh/m²a
Reference airflow rate
0.06 m³/s
Specific power input (SPI)
0.35 W/(m³/h)
Specific Fan Power (SFP)
1.26 kW/(m³/s)
Maximum extract airflow @ 100 Pa
96 l/s
Maximum supply airflow @ 100 Pa
85 l/s
Maximum supply airflow EcoDesign
302 m³/h

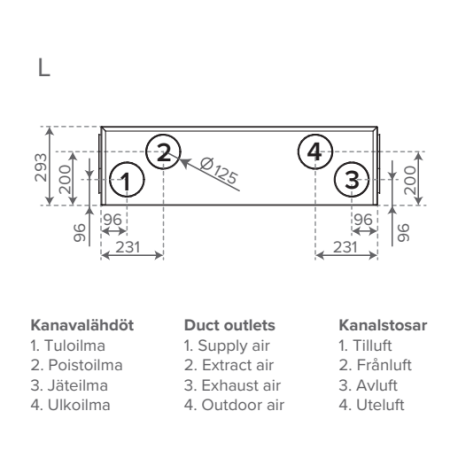

Duct outlets pcs
8

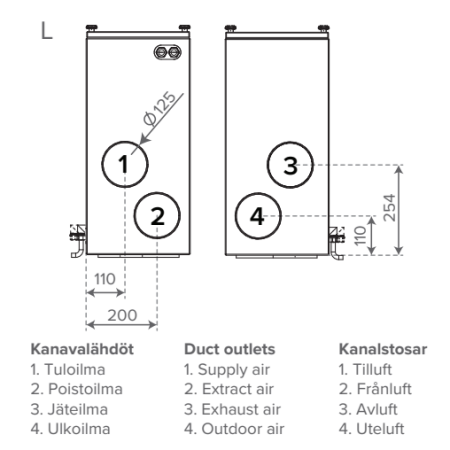

Duct outlet mm
125 mm

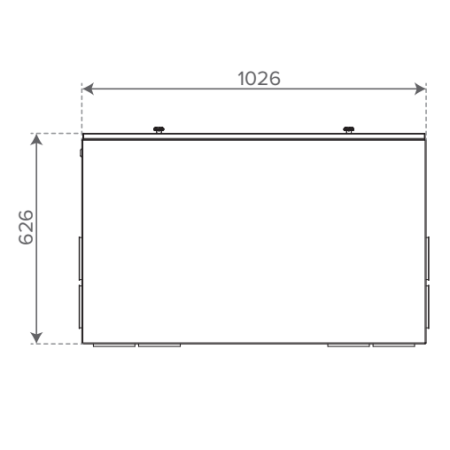

Product depth mm
626
Product width mm
1026
Product height mm
293
Product weight
63.2 kg
Package weight
67.8 kg
ETIM EF003701 electrical connection
Connection cable with protective earthed plug
Mounting place
Ceiling
Remote monitoring options
MyVallox Cloud service, MyVallox Home network, External voltage message 0-10 VDC
Bus control
Modbus RTU (standard feature), KNX converter (optional)
Extract air fan power consumption
0.071 kW
Supply air fan power consumption
0.071 kW
Sound power level
49.9 dB

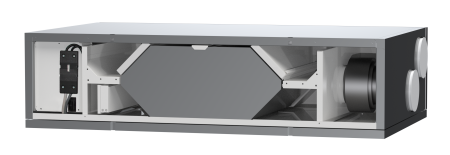

Cell type
Cross-counter flow cell
Cell
Aluminium
HRU cell bypass
Automatic heat recovery bypass, partial bypass with cool recovery
Defrosting method
Vallox on-demand -defrosting automatics with heat recovery cell bypass
Post-heating
Electrical resistor, 900 W
Additional heating
Electrical resistor, 900 W
Electrical connection
230 V / 50 Hz / 8,8 A
Encapsulation class
IP34
Unit maximum power consumption
2 kW
Vallox TSK Multi 80 MV RA00
SKU: 3547500
Product weight: 63.2 kg
Package weight: 67.8 kg
Control panel needs to be ordered separately.
Vallox TSK Multi 80 MV LA00
SKU: 3547600
Product weight: 63.2 kg
Package weight: 67.8 kg
Control panel needs to be ordered separately.
Vallox TSK Multi 80 MV RA01
SKU: 3547700
Product weight: 63.2 kg
Package weight: 67.8 kg
Control panel needs to be ordered separately.
GTIN: 6438326005869
Vallox TSK Multi 80 MV LA01
SKU: 3547800
Product weight: 63.2 kg
Package weight: 67.8 kg
Control panel needs to be ordered separately.
GTIN: 6438326005876
Vallox TSK Multi 80 MV RA02
SKU: 3571000
Product weight: 63.2 kg
Package weight: 67.8 kg
Control panel needs to be ordered separately.
GTIN: 6438326000284
Vallox TSK Multi 80 MV LA02
SKU: 3571100
Product weight: 63.2 kg
Package weight: 67.8 kg
Control panel needs to be ordered separately.
GTIN: 6438326000291
