Vallox Pureo TX 1800
Vallox Pureo TX 1800

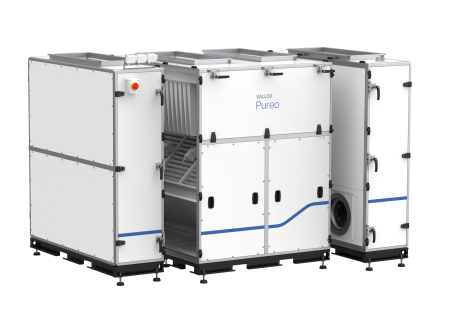

Vallox Pureo TX 1800 is a compact modular air handling unit designed for large premises. Typical applications include schools, daycare centres, sports halls, offices and shops. The elegant unit, designed for the Finnish climate, can also be installed in a visible location at the premises.
The Pureo TX 1800 air handling unit meets the requirements of the VDI 6022 hygiene standard. The duct outlets are located on top of the unit. The unit is equipped with efficient heat recovery and a post-heating liquid radiator. The soundproofing and thermal insulation of the air handling unit are also excellent: the airtightness (L1) and strength (D1) of the envelope are of top class. The heat transfer class of the frame is T2/TB2.
Thanks to the service doors on the sides of the unit, maintenance of Vallox Pureo TX 1800 is easy. The modular structure of the unit allows it to be hauled in place through a standard door (90 cm) during installation.
The control method of the unit may be chosen according to the site. Pureo TX 1800 can be connected to any existing house automation system or to the Vallox Pureo control panel equipped with a touch screen. The comprehensive standard equipment delivered with the unit can be supplemented with an excellent selection of accessories according to the need.
The Pureo TX 1800 air handling unit meets the requirements of the VDI 6022 hygiene standard. The duct outlets are located on top of the unit. The unit is equipped with efficient heat recovery and a post-heating liquid radiator. The soundproofing and thermal insulation of the air handling unit are also excellent: the airtightness (L1) and strength (D1) of the envelope are of top class. The heat transfer class of the frame is T2/TB2.
Thanks to the service doors on the sides of the unit, maintenance of Vallox Pureo TX 1800 is easy. The modular structure of the unit allows it to be hauled in place through a standard door (90 cm) during installation.
The control method of the unit may be chosen according to the site. Pureo TX 1800 can be connected to any existing house automation system or to the Vallox Pureo control panel equipped with a touch screen. The comprehensive standard equipment delivered with the unit can be supplemented with an excellent selection of accessories according to the need.

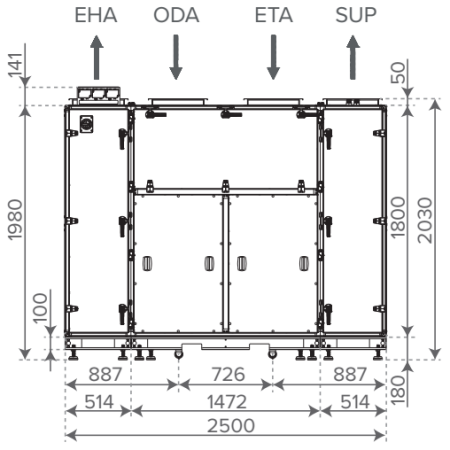

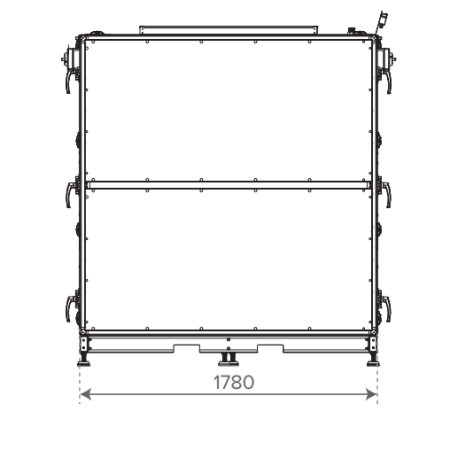

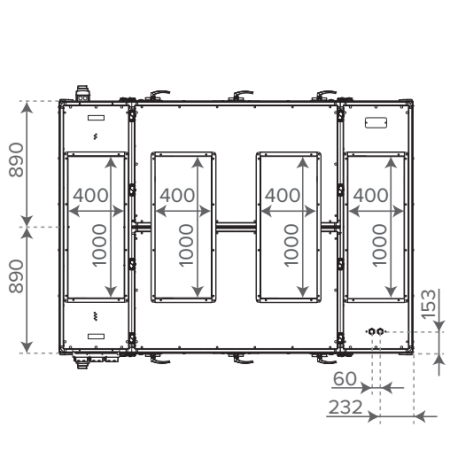

Product depth mm
1780
Product width mm
2500
Product height mm
1980
Product weight
978 kg
Package weight
978 kg
Cell type
Counter flow cell
Cell
Aluminium
Vallox Pureo TX 1800
SKU: 3600030
Product weight: 978 kg
Package weight: 978 kg
GTIN: 6438326000048
