Vallox > Vallox TSK Multi 50 MV plastic
Vallox TSK Multi 50 MV plastic
Vallox TSK Multi 50 MV plastic
The Vallox TSK Multi 50 MV ventilation unit with a low structure and versatile installing options is suitable for small apartments. For instance, the unit can be installed inside a suspended ceiling in the entrance area, which enables maintenance from the staircase without the need to enter the apartment. Another typical location for the unit is the vestibule.
Thanks to its easy operation and maintenance features, Vallox TSK Multi 50 MV is perfect for multi-storey buildings and terraced houses, for example. The easy-to-use ventilation unit automatically boosts the ventilation when triggered by the integrated humidity and carbon dioxide sensors, which improves the unit’s energy-efficiency. The annual efficiency of the unit is as high as 79%.
The ventilation unit may be controlled remotely via a cloud service, with the MyVallox control panel or with a cooker hood. Registering the unit with the free MyVallox Cloud service enables remote control and automatic updating of the unit. In addition, subject to the user’s permission, technical support may connect to the unit via MyVallox Cloud, which makes any maintenance easier. The Vallox TSK Multi 50 MV ventilation unit may be connected to the house automation system via KNX or Modbus RTU.
Thanks to its easy operation and maintenance features, Vallox TSK Multi 50 MV is perfect for multi-storey buildings and terraced houses, for example. The easy-to-use ventilation unit automatically boosts the ventilation when triggered by the integrated humidity and carbon dioxide sensors, which improves the unit’s energy-efficiency. The annual efficiency of the unit is as high as 79%.
The ventilation unit may be controlled remotely via a cloud service, with the MyVallox control panel or with a cooker hood. Registering the unit with the free MyVallox Cloud service enables remote control and automatic updating of the unit. In addition, subject to the user’s permission, technical support may connect to the unit via MyVallox Cloud, which makes any maintenance easier. The Vallox TSK Multi 50 MV ventilation unit may be connected to the house automation system via KNX or Modbus RTU.
Including accessories: Condensing water seal Vallox SilentKlick.
- Maximum recommended living area 80 m²
- Maximum extract airflow @ 100 Pa 57 l/s
- Maximum supply airflow @ 100 Pa 49 l/s
- Maximum supply airflow EcoDesign 169 m³/h
Suitable for the following applications


Maximum recommended living area
80 m²
Annual efficiency (%)
79
Temperature efficiency of heat recovery (%)
88.8
SEC average climate
-41.472 kWh/m²a
Reference airflow rate
0.034 m³/s
Specific power input (SPI)
0.36 W/(m³/h)
Specific Fan Power (SFP)
1.296 kW/(m³/s)
Maximum extract airflow @ 100 Pa
57 l/s
Maximum supply airflow @ 100 Pa
49 l/s
Maximum supply airflow EcoDesign
169 m³/h

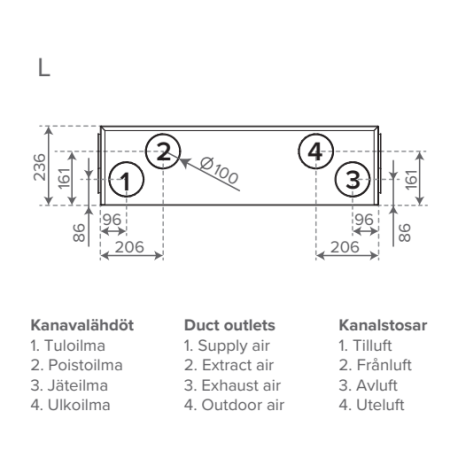

Duct outlets pcs
8
Duct outlet mm
100 mm
Product depth mm
547
Product width mm
900
Product height mm
236
Product weight
47 kg
Package weight
51.1 kg
ETIM EF003701 electrical connection
Connection cable with protective earthed plug
Mounting place
Ceiling
Remote monitoring options
MyVallox Cloud service, MyVallox Home network, External voltage message 0-10 VDC
Bus control
KNX converter (optional), Modbus RTU (standard feature)
Extract air fan power consumption
0.043 kW
Supply air fan power consumption
0.043 kW
Sound power level
48.9 dB
Cell type
Cross-counter flow cell
Cell
Plastic
HRU cell bypass
Automatic heat recovery bypass, partial bypass with cool recovery
Defrosting method
MC defrosting automatics with supply air fan stop
Electrical connection
230 V / 50 Hz / 4,5 A
Encapsulation class
IP34
Unit maximum power consumption
1 kW
Vallox TSK Multi 50 MV RP00
SKU: 3547900
Product weight: 47 kg
Package weight: 51.1 kg
Control panel needs to be ordered separately.
Vallox TSK Multi 50 MV LP00
SKU: 3548000
Product weight: 47 kg
Package weight: 51.1 kg
Control panel needs to be ordered separately.
